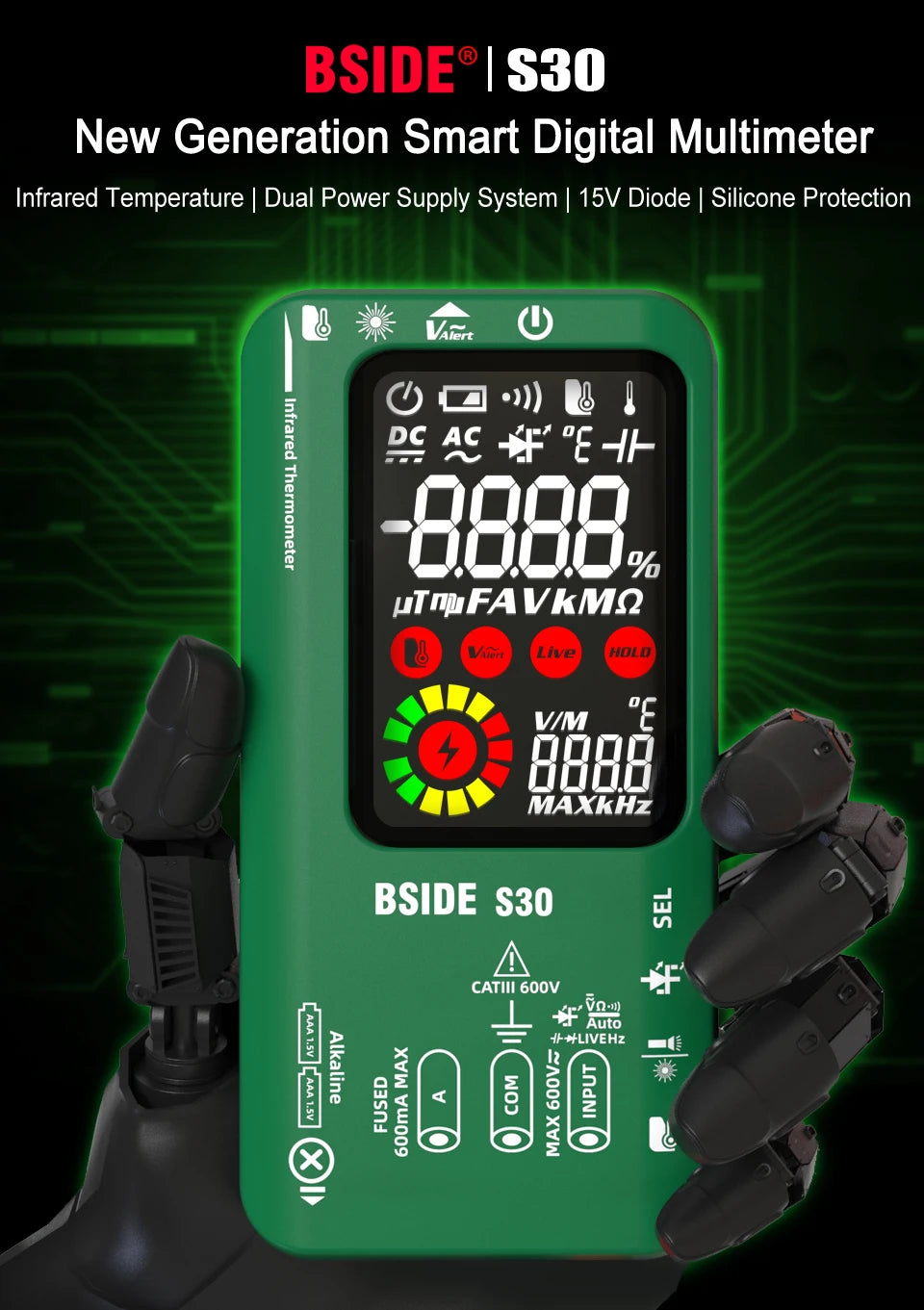

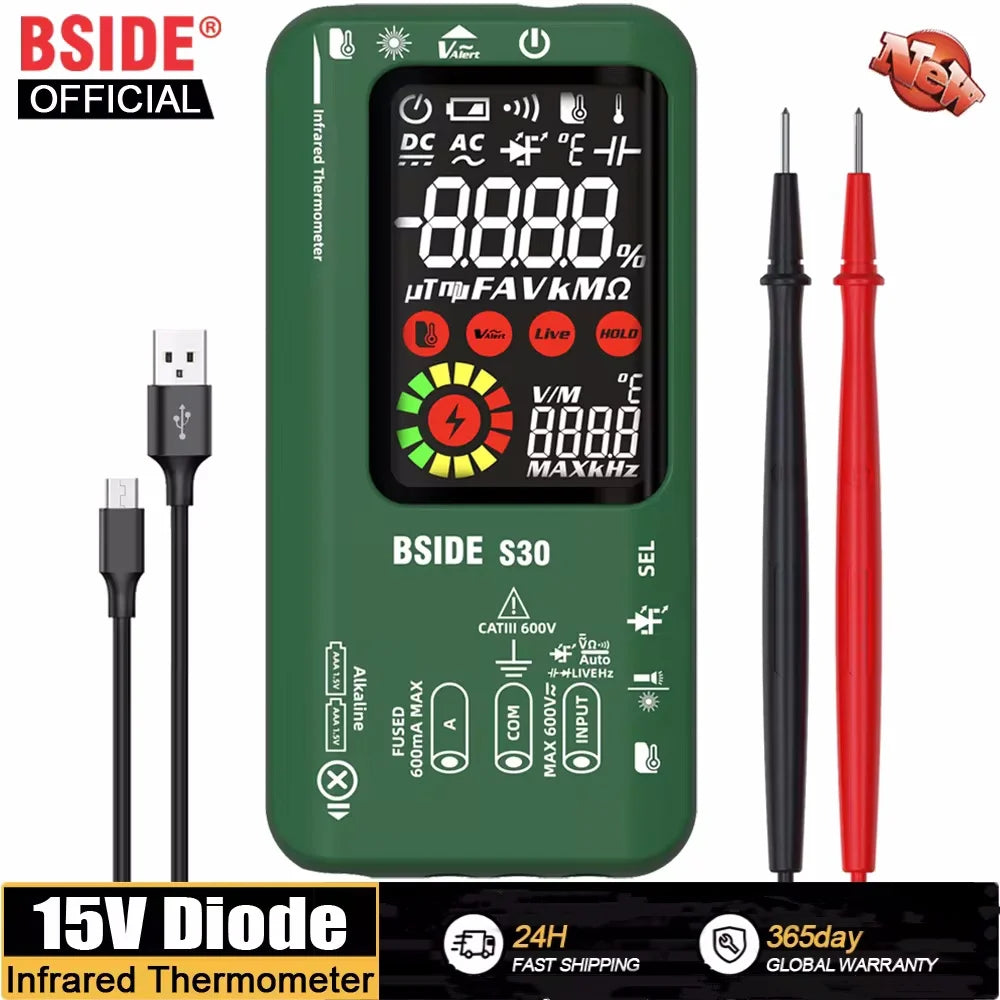

Smart Digital Multimeter with Infrared Thermometer and Dual Power System
The BSIDE S30 Smart Digital Multimeter offers a new generation of testing capabilities, combining a high-precision multimeter with an infrared thermometer. Designed for professional electricians, engineers, and electronic enthusiasts, this device ensures reliable measurements with enhanced convenience through intelligent features and a dual power supply system.
Features:

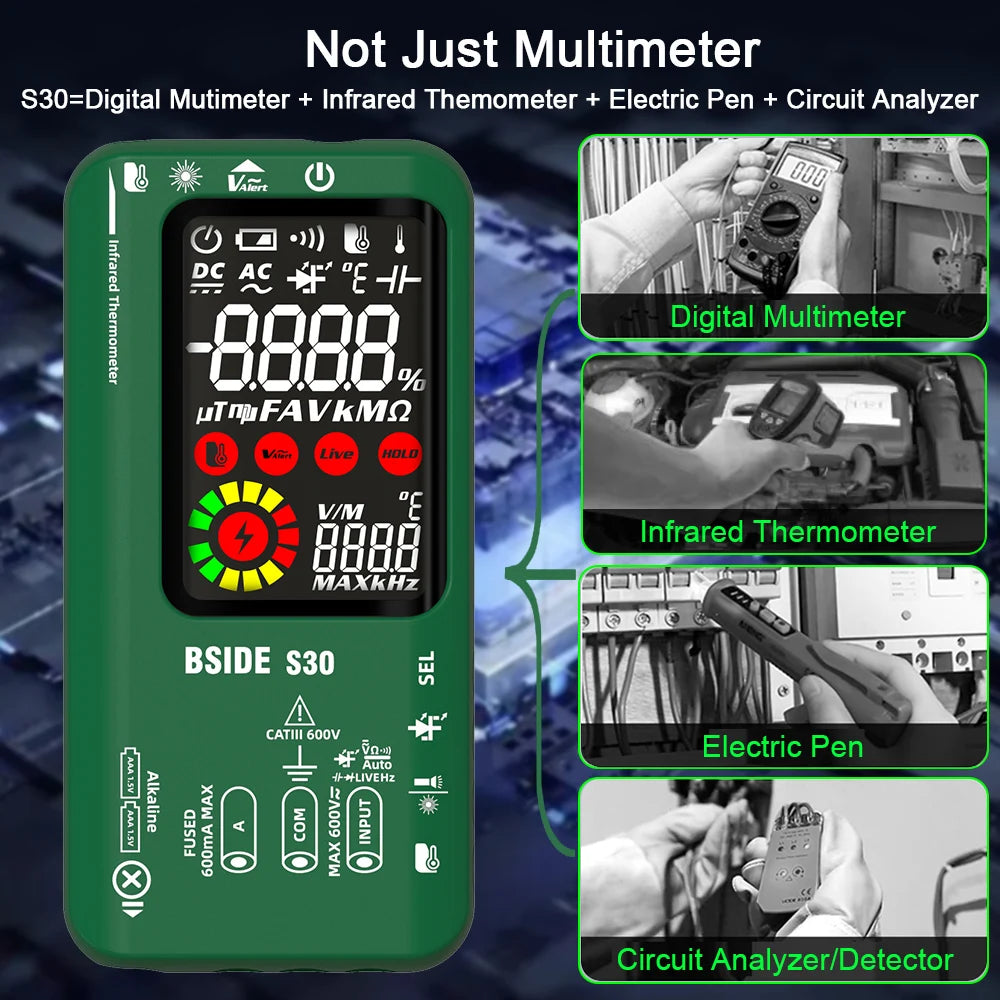

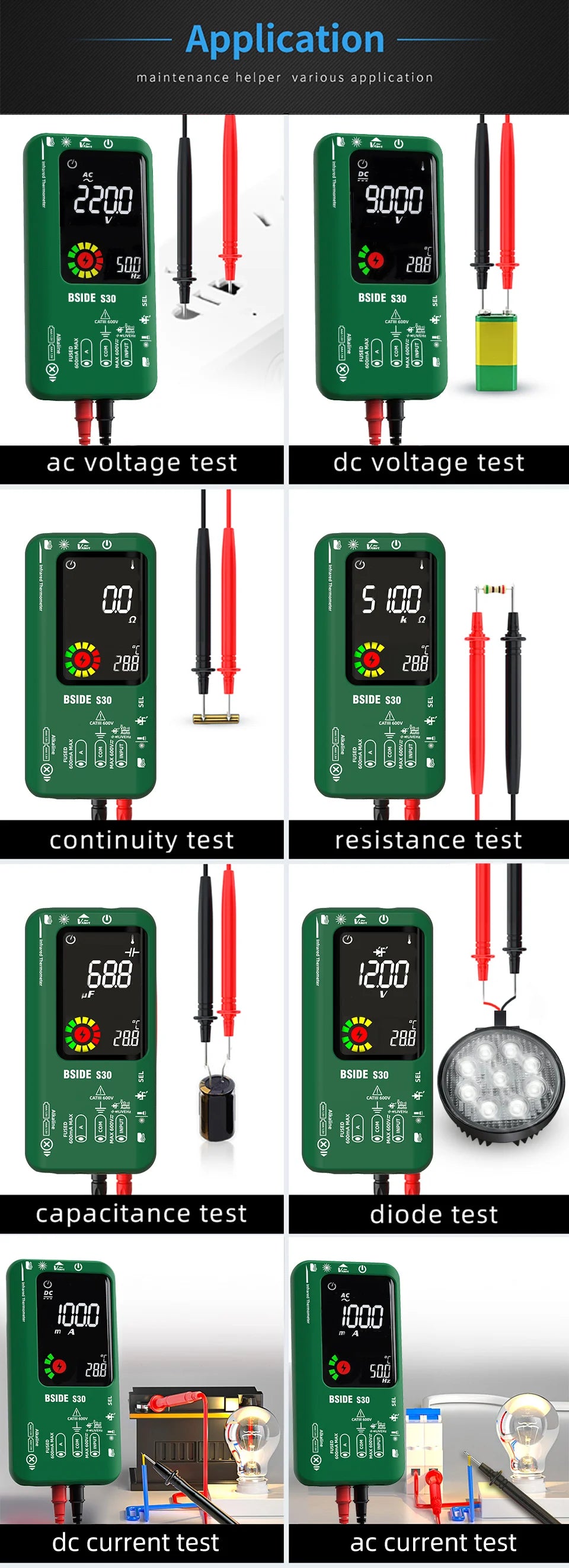

Multifunctional Tester: Measures DC/AC voltage and current, resistance, capacitance, diode testing, and infrared temperature detection.

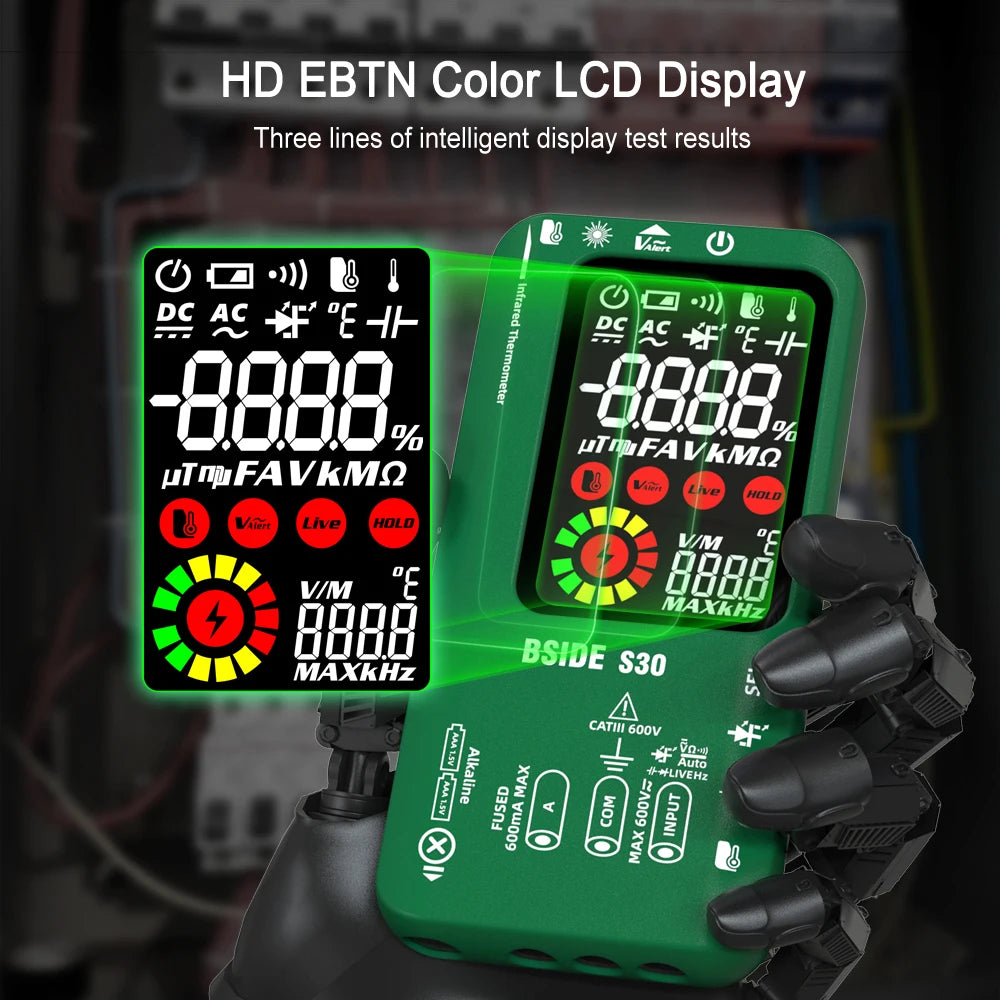

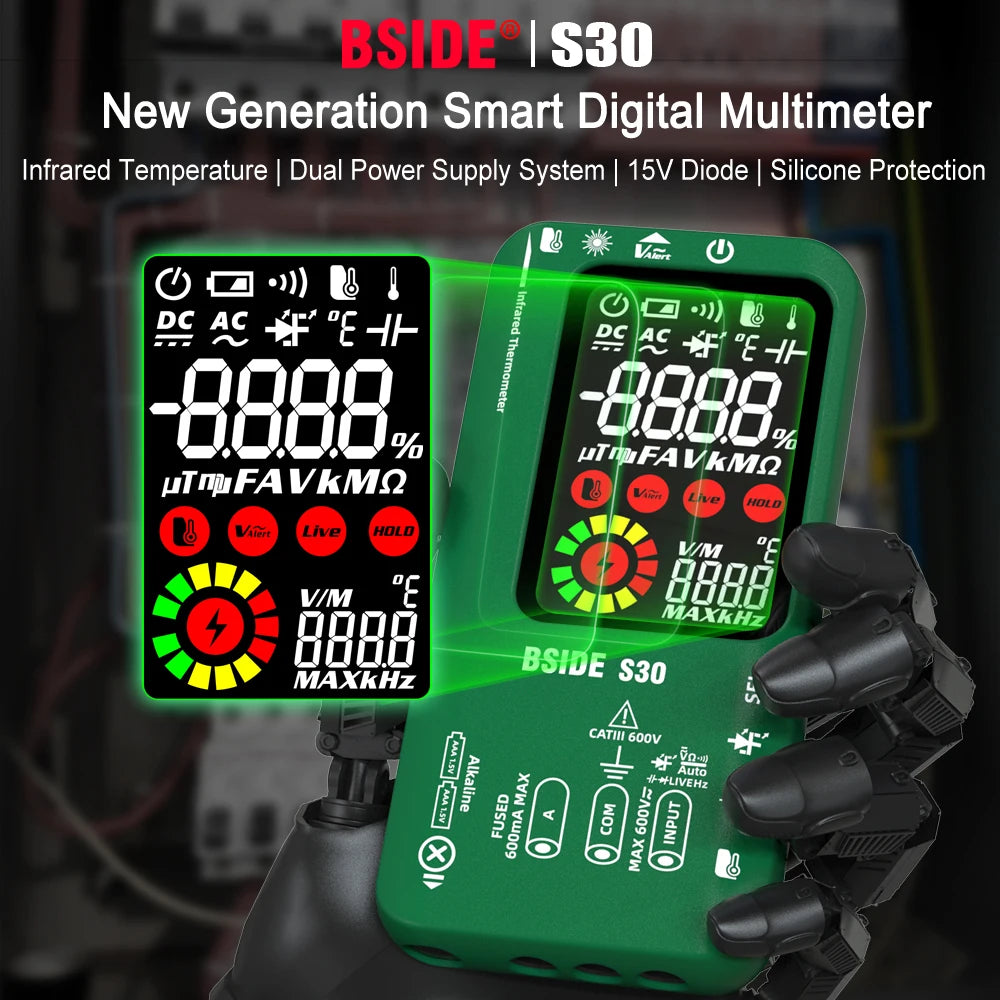

Advanced Display: 3.8-inch HD EBTN color LCD screen with a maximum display of 9999 counts for easy readability.

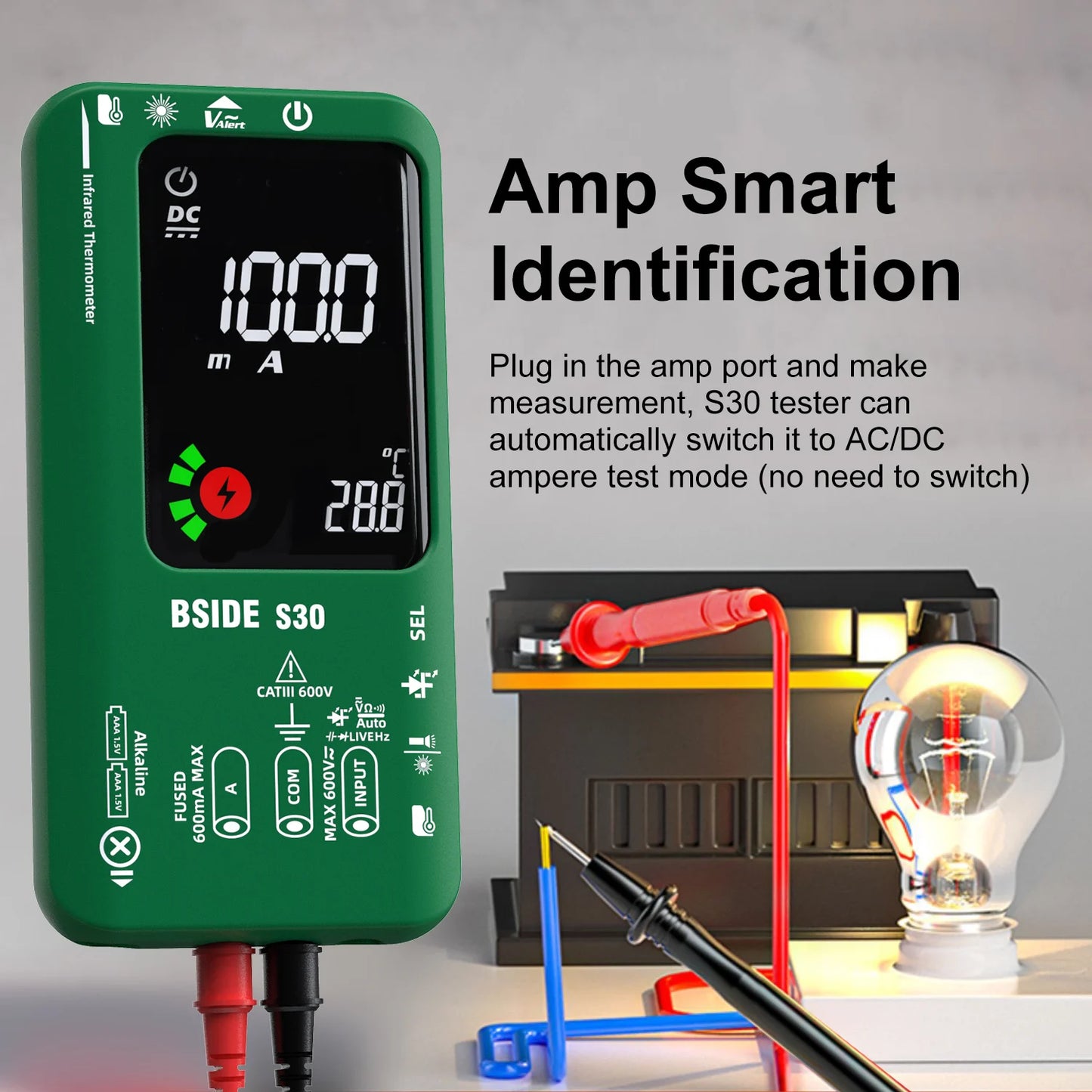

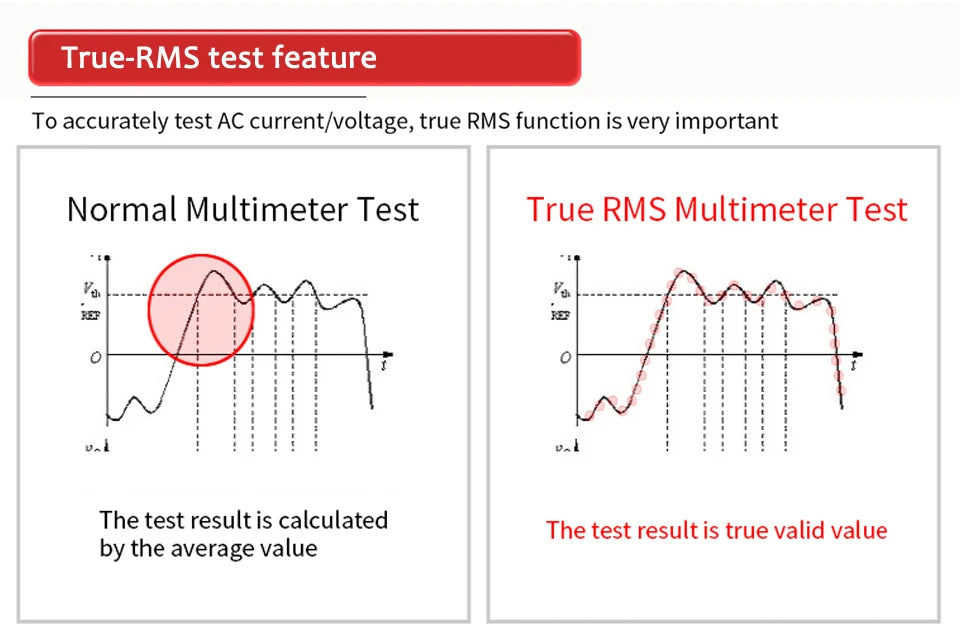

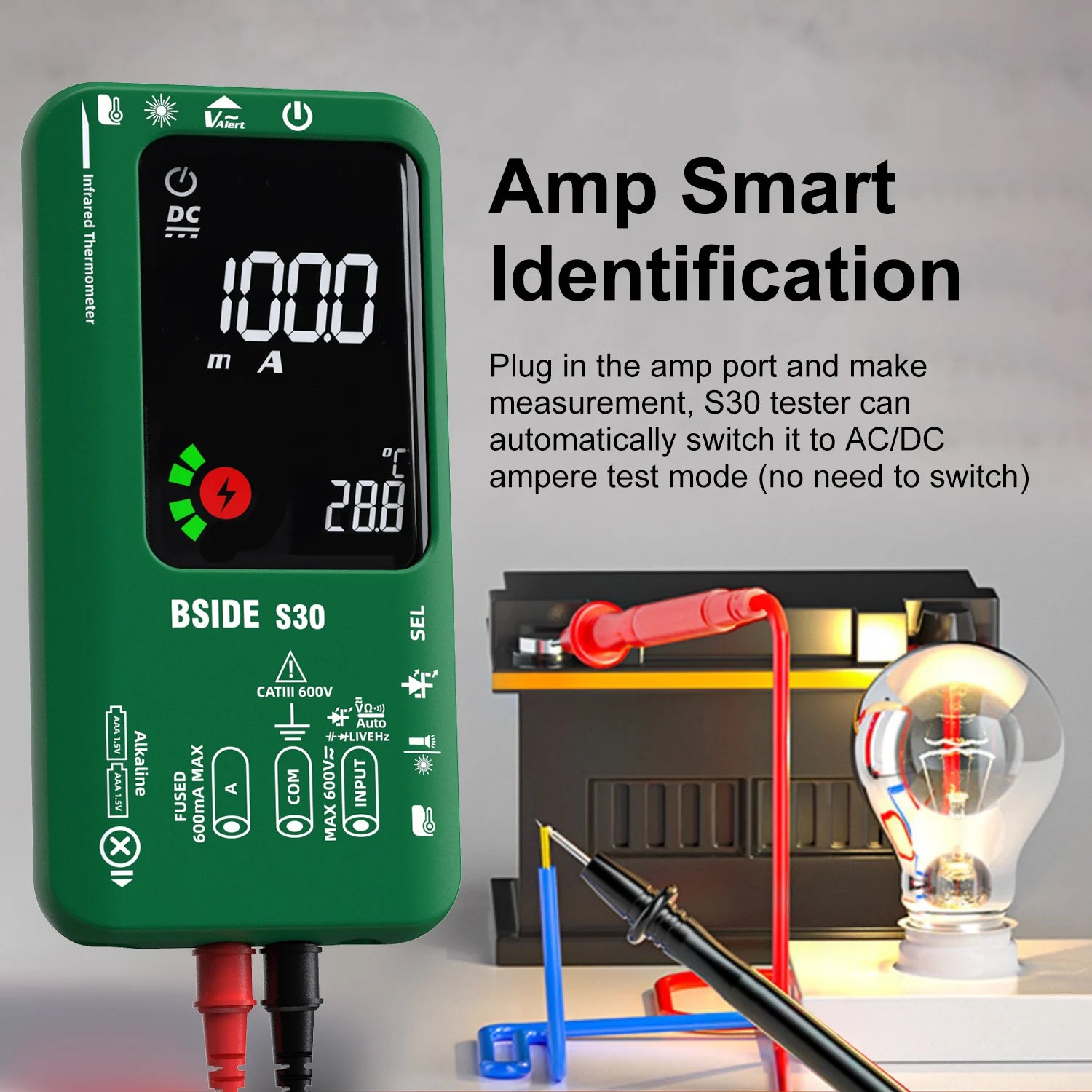

True RMS and Smart Identification: Supports True RMS accuracy, auto/manual range selection, and smart DC/AC current switching.

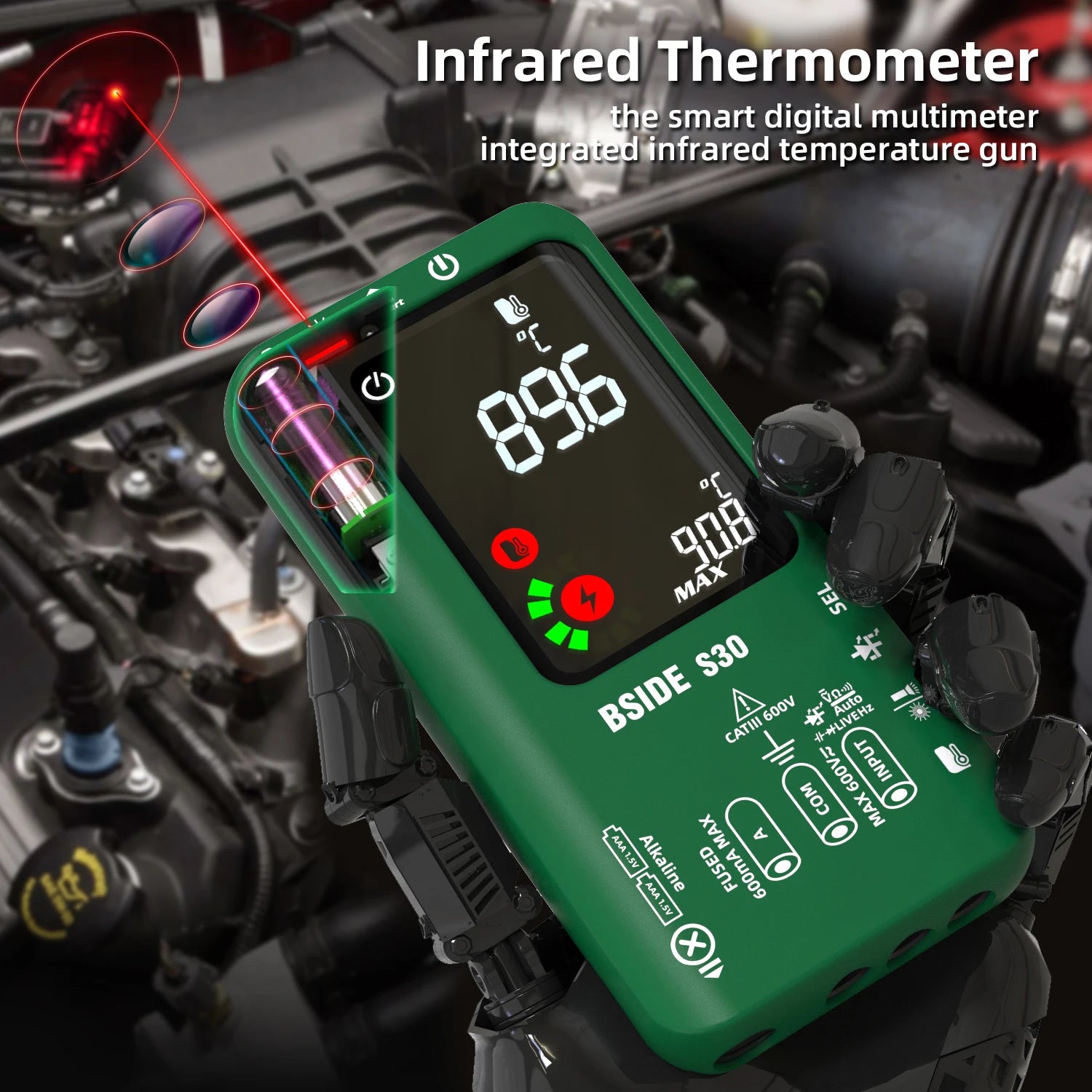

Infrared Temperature Measurement: Laser-guided infrared measurement ranging from -20°C to 400°C (-4°F to 752°F) for fast, contactless temperature checks.

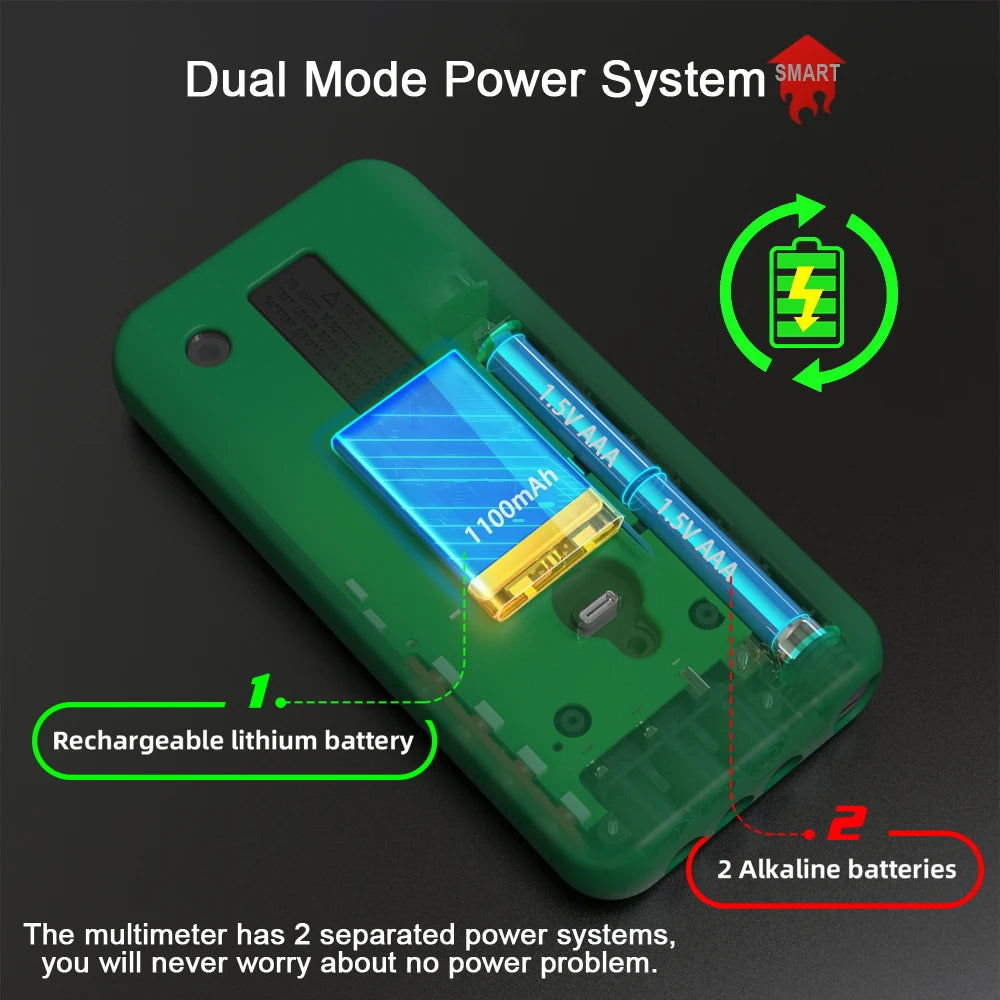

Dual Power Options: Equipped with a built-in 1100mAh rechargeable lithium battery (USB charging supported) and backup support for 2 AAA batteries.
Durable and Safe: Comes with a high-quality silicone protective case, a carrying bag, and CAT III 600V safety rating.

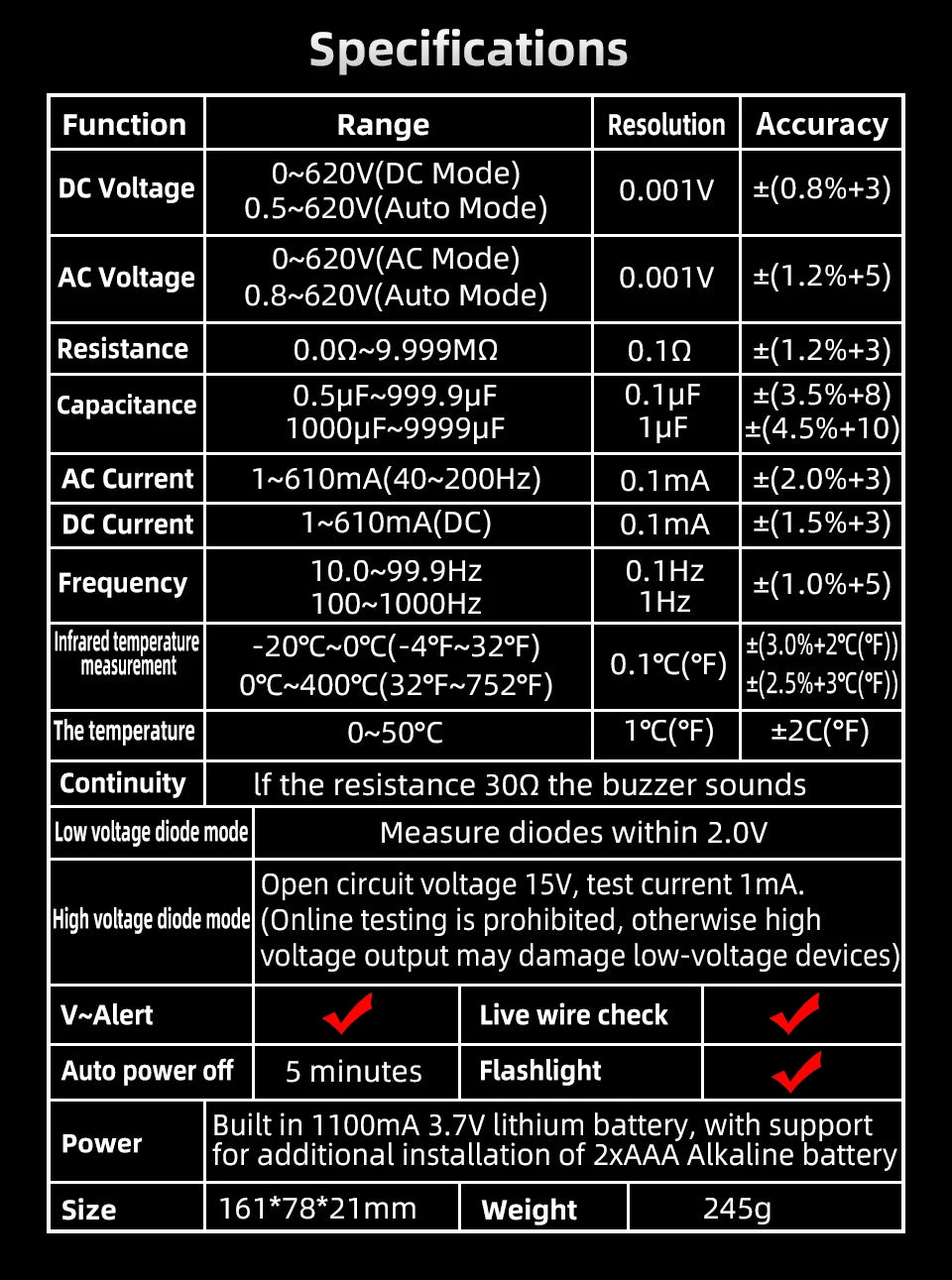

Specifications:
DC Voltage: 0-620V, Resolution: 0.001V, Accuracy: ±0.8%+3

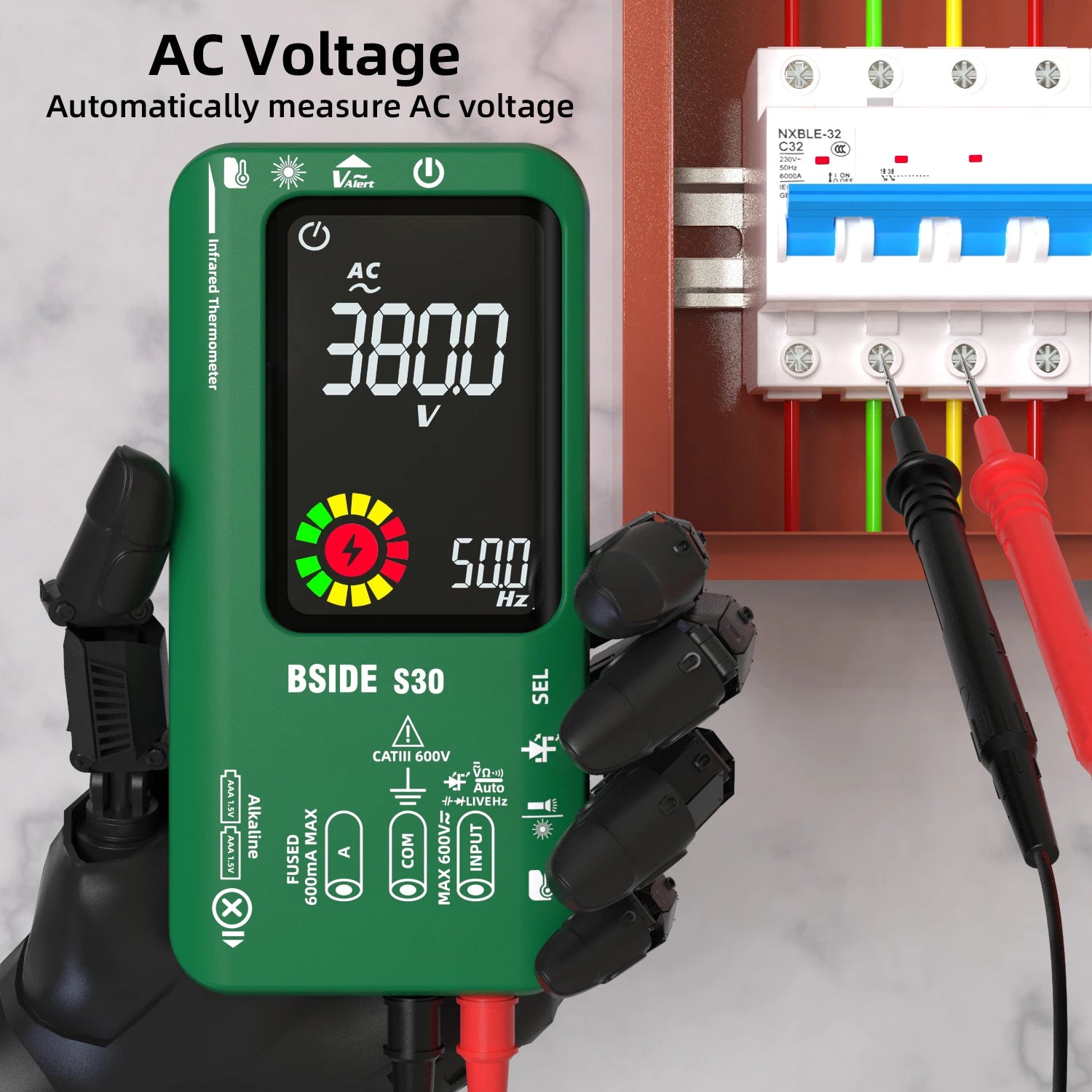

AC Voltage: 0-620V, Resolution: 0.001V, Accuracy: ±1.2%+5
DC/AC Current: 1-610mA, Resolution: 0.1mA
Resistance: 0Ω-10MΩ
Capacitance: 0.5µF-10mF
Frequency Measurement: 10Hz-1000Hz
Infrared Temperature Measurement: -20°C to 400°C (-4°F to 752°F)

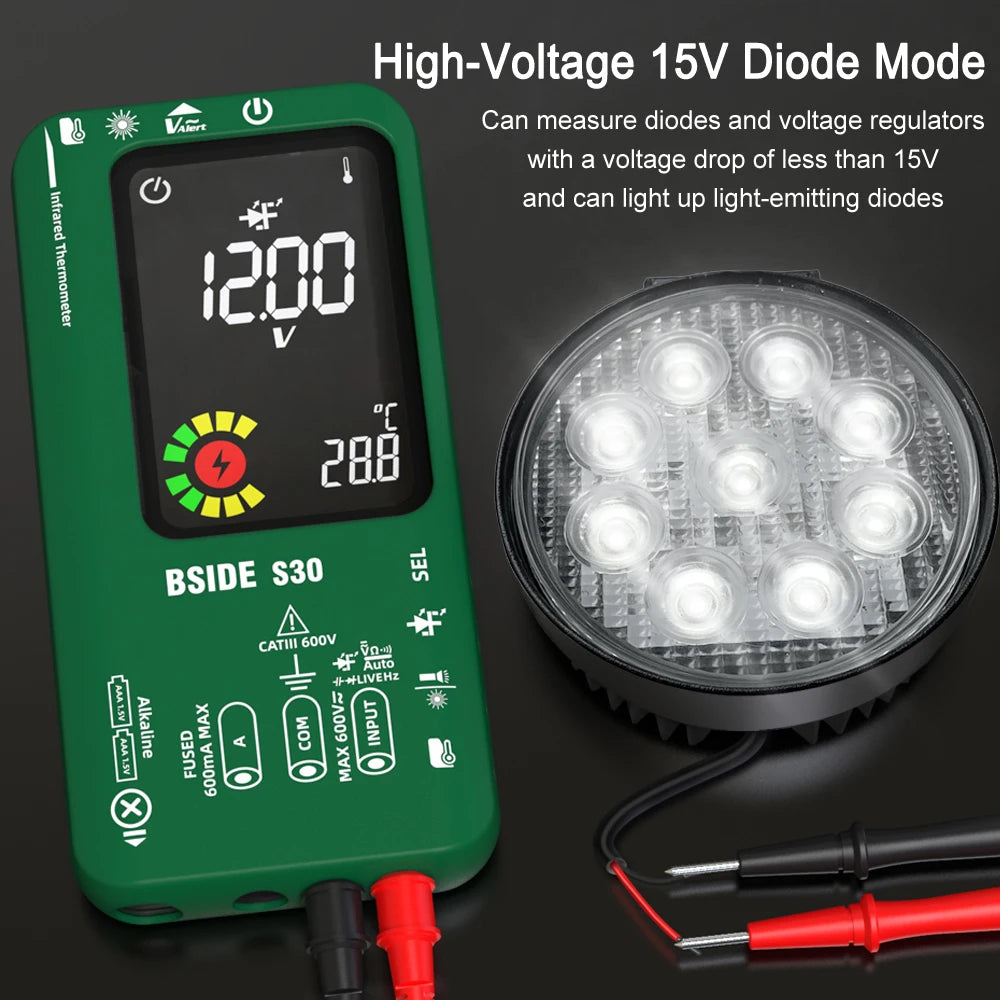

Diode Test Voltage: Low Voltage within 2.0V; High Voltage up to 15V

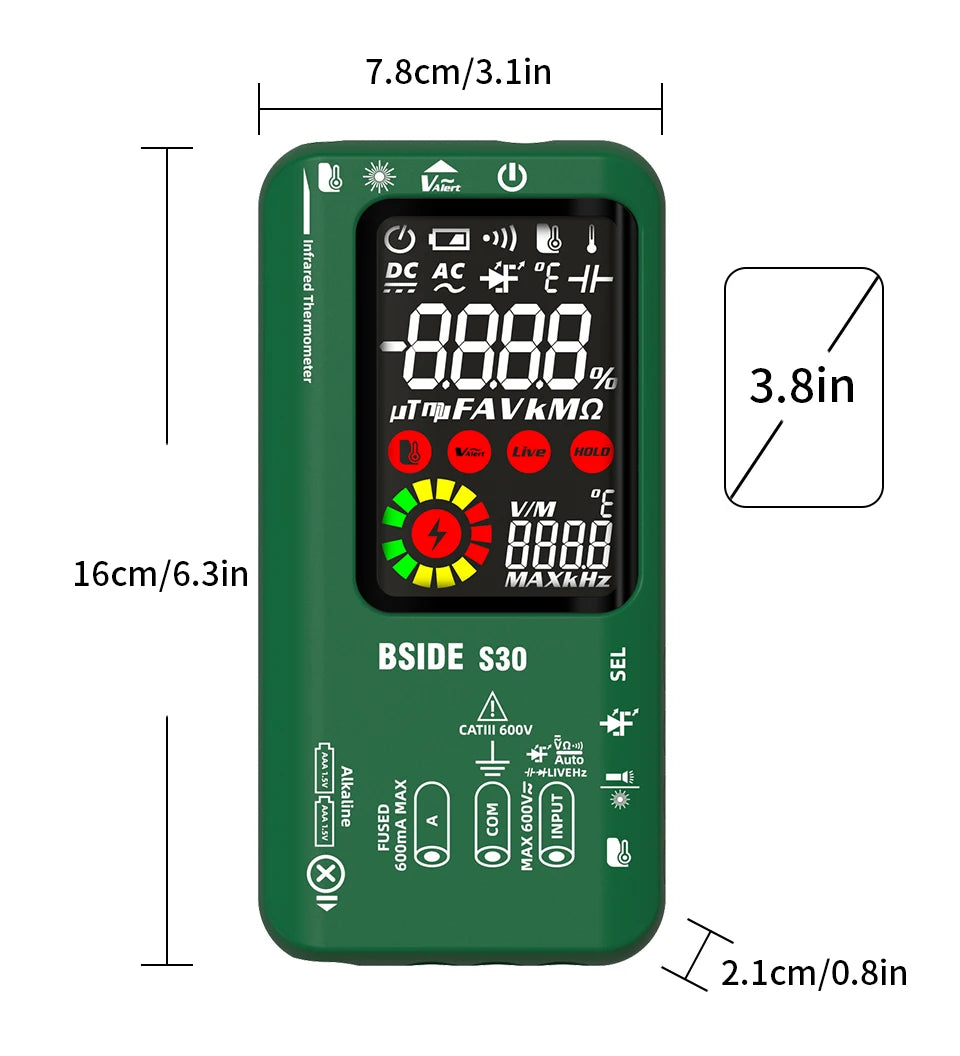

Size: 161 x 78 x 21 mm
Weight: 245g

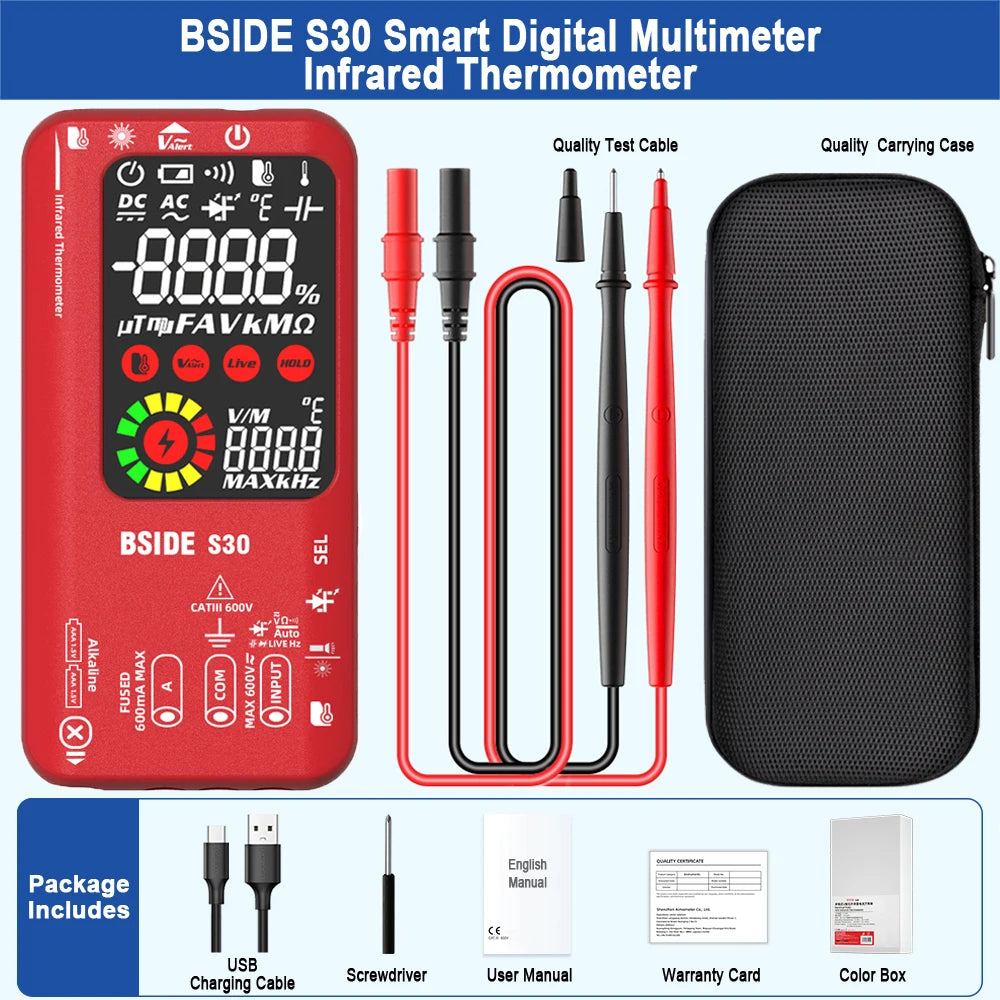

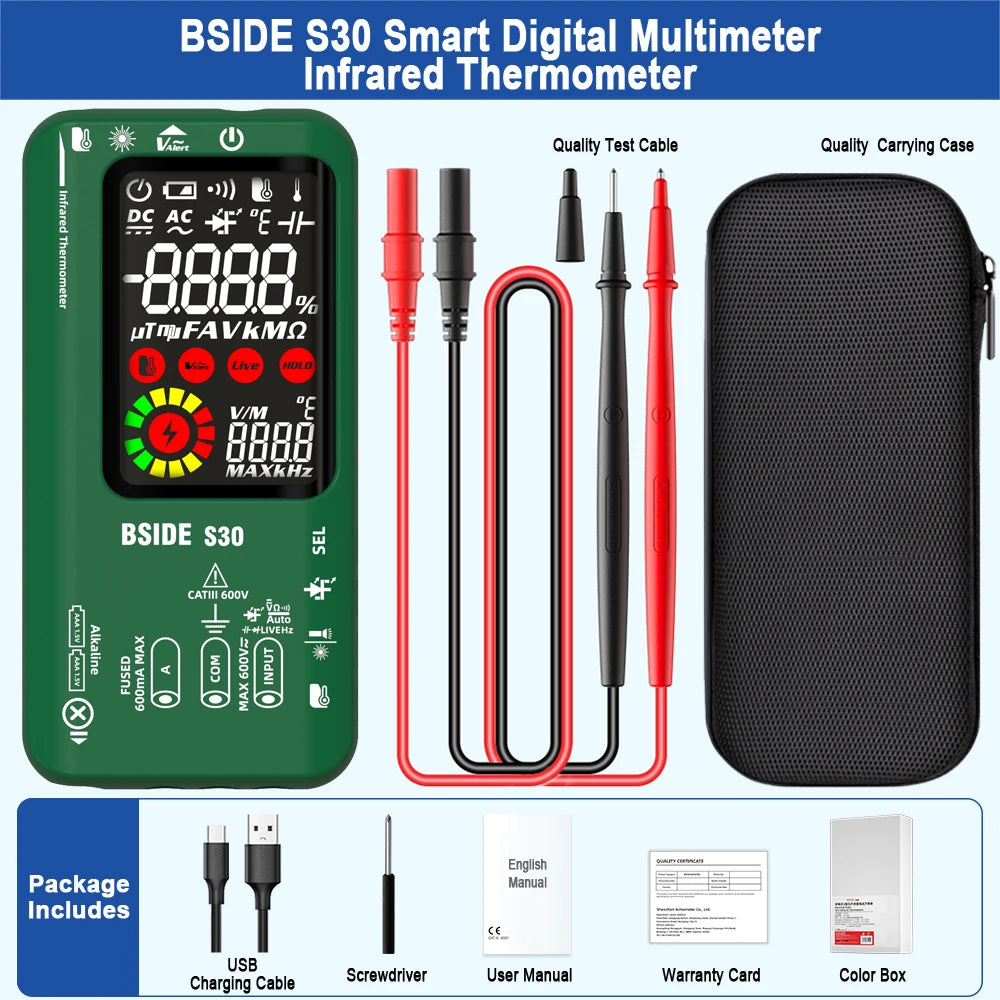

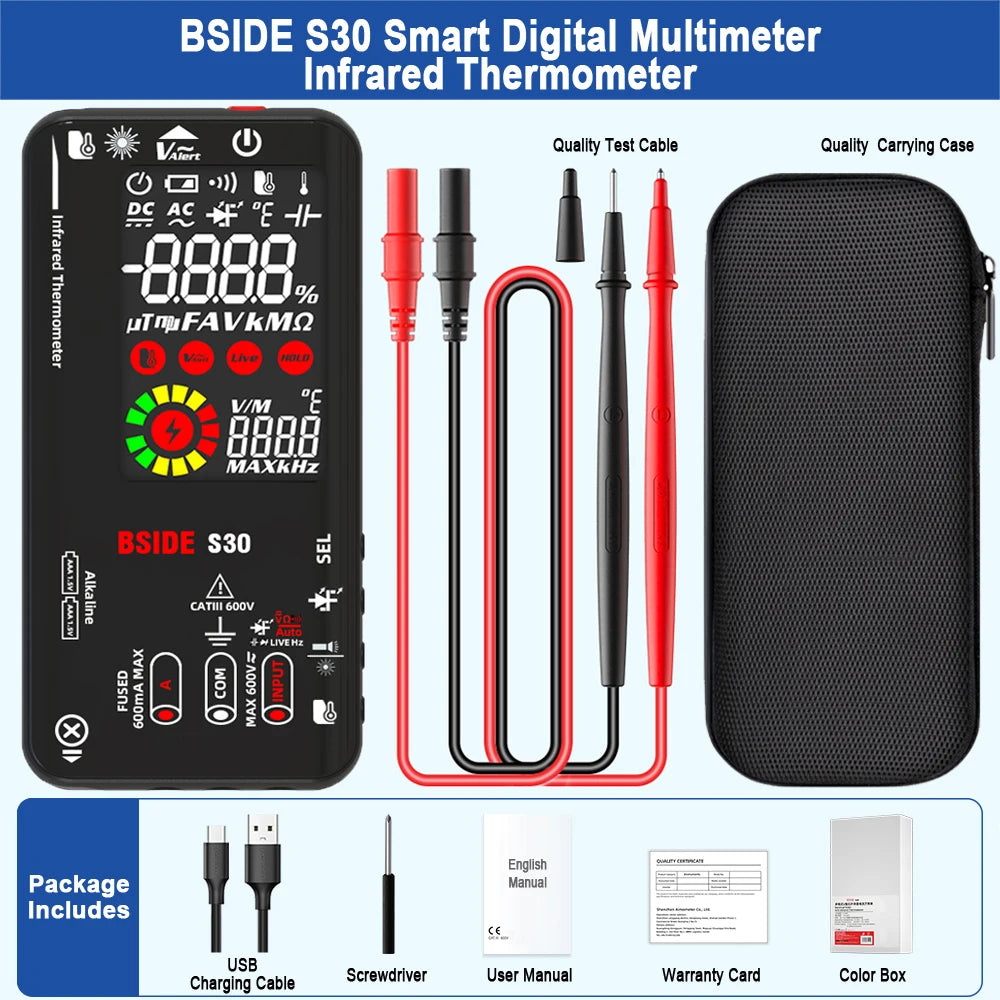

Package Includes:
1 x Smart Digital Multimeter with Infrared Thermometer (built-in Lithium Battery)
1 x Upgraded Test Leads
1 x USB Charging Cable
1 x Carrying Case
1 x Screwdriver
1 x User Manual
1 x Color Box
Important Note:
The multimeter should be fully charged before the first use to ensure optimal performance. This device is designed for general testing and maintenance purposes and is not intended for medical or industrial hazardous environment use.
